LED Pattern Projection Lamp and LED Display Screen

LED Pattern Projection Lamp and LED Display Screen

1 Application Scenario Analysis

LED pattern projection lamp and LED display have their own unique application scenarios and advantages in the field of commercial advertising. LED display as aDirect Display Device, with its high brightness, high contrast and bright color performance, it can still maintain excellent visual effects in bright environments, making it necessary for outdoor advertising, mall atriums, stadiums, etc.attract the eyewas outstanding. The LED display adopts modular design, which can be freely spliced into any size and proportion according to the needs, and even realize curved surface and special-shaped display effect. This flexibility meets the display requirements of different spaces and ideas.

. For example, in the product display area of the brand flagship store, the LED display can be seamlessly spliced into a huge background wall, playing dynamic promotional content, and effectively enhancing the brand image and customer stay time.

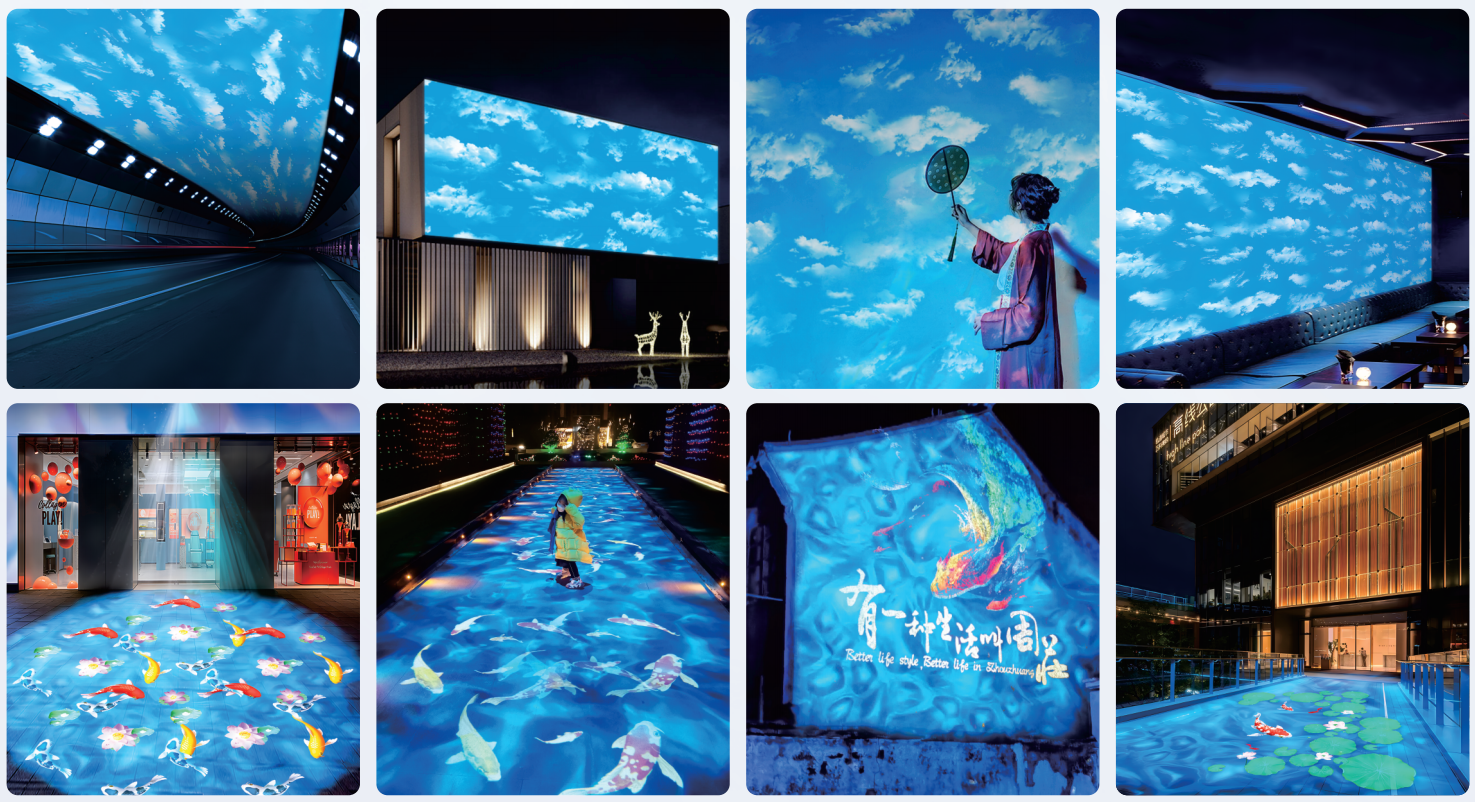

In contrast, the LED pattern projection lamp is aprojection technology, it projects a preset pattern or dynamic content onto the building's exterior walls, the ground, or a specific medium. The advantage of the projection lamp is itsInstallation Flexibilityandcreative mapping ability, an immersive visual experience can be achieved on an irregular surface. For example, in the atrium of a large shopping mall, projection lamps can project interactive advertising patterns on the ground, changing with the movement of customers, enhancing the fun of interaction

. However, the traditional projection lamp does not perform well under the condition of strong ambient light, and it is easy to cause image blur and color distortion due to light interference, which limits its application in bright environments.

specifically, both technologies have their applicability in the following typical business scenarios:

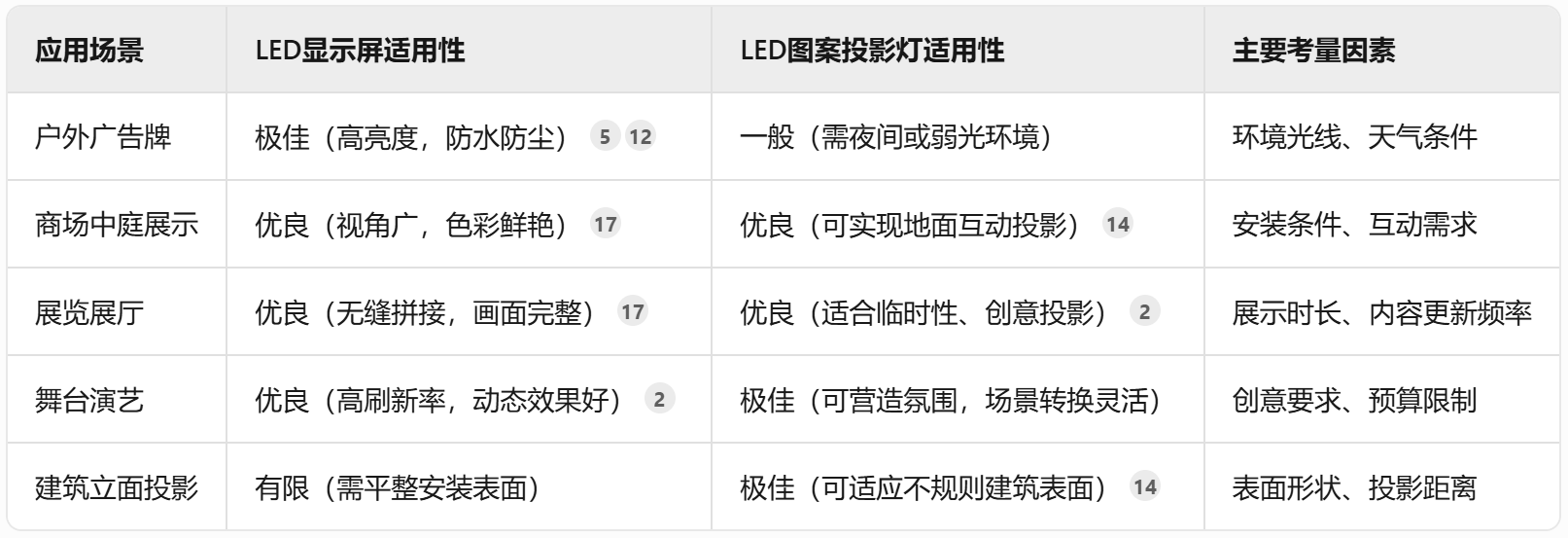

Table: Application Scenarios Comparison of LED Display and LED Pattern Projection Lamp

from the application trend, with the development of technology, two kinds of technology also appearedFusion Applicationsinnovation model. At the 2024 McDonald's Global Conference, the organizers will skillfully combine LED display screen with projection technology to give full play to their respective advantages-LED screen provides a solid visual foundation as the background of the main stage, while projection expands the visual boundary, creates an immersive environmental effect, and realizes1 1>2visual effects. This integration solution provides new ideas for commercial advertising innovation. Brands can flexibly match the two technologies according to budget and creative needs to create a more impactful advertising presentation.

2 Material and structural properties

2.1 LED display

LED display is a display device composed of a large number of light-emitting diodes (LEDs) as pixels, and its material composition directly determines the display effect and service life. The core materials include LED lamp beads, driver IC, PCB board, box structure and control system. LED lamp beads are the display screenCore Components, its quality directly affects the brightness, color and life of the display. High-end LED lamp beads usually use brand chips such as the United States and Japan and Asia, which have the characteristics of high brightness, high stability and good consistency, while domestic chips such as Sanan and Shilan have advantages in terms of cost performance.

. Lamp beads are also packaged in a variety of ways. Outdoor display screens mostly use in-line LEDs with high brightness and good waterproofness. Indoor display screens are multi-purpose surface-mounted, which can achieve higher pixel density and wider viewing angle.

drive IC is the impact of display quality and lifekey factors, high-quality driver IC can ensure that the display color is accurate, high refresh rate and long life. The PCB board is used as an electronic component carrier, and its number of layers and material affect the stability and heat dissipation effect of the display screen. The box structure is usually made of aluminum or sheet metal materials, outdoor type also need to do waterproof, dustproof treatment, to reach IP65 and above protection level

. The power module provides stable power for the display, and its reliability is directly related to the stability of the entire system. In addition, outdoor LED display also need to consider lightning protection devices, heat dissipation systems (such as axial fans), power distribution systems and other auxiliary equipment.

2.2 LED pattern projection lamp material characteristics

LED pattern projection lamp is mainly composed of an optical engine, an imaging system, a cooling system and a housing. The core of the optical engine is the LED light source. Compared with the UHP (ultra-high pressure mercury lamp) or laser light source used in traditional projectors, the LED light source haslife,wide color gamutandmomentary switch. LED light source life of up to 20,000 hours, much higher than the UHP light source of 3,000-5,000 hours

. The imaging system contains a DMD (digital micromirror device) or LCoS (reflective liquid crystal) chip, which is responsible for image formation, of which Texas Instruments' DLP technology is the mainstream solution. Pattern projection lamps can usually be equipped with pattern wheels, color wheels and other accessories to achieve special projection effects.

cooling system is essential for projection lamps, because LEDs generate heat when they emit light, and overheating can lead to reduced brightness and shortened life. High quality projection lamp is adoptedEfficient thermal design, such as heat pipes, fan combinations or even liquid-cooled systems. The shell protects the internal precision components. The outdoor projection lamp needs to be waterproof, dustproof and anticorrosive. It is usually made of die-cast aluminum and has surface treatment to improve durability. It is worth mentioning that the transparent LED display that has appeared in recent years, although it does not belong to projection technology, as an emerging technology, its light weight and high transparency provide new possibilities in certain commercial advertising scenarios.

.

2.3 material differences on commercial applications

two technologies determine their different application scenarios and commercial value. LED display usingModular design, each module is an independent display unit, which allows the display to be flexibly combined into various sizes, but also leads to high weight and volume. The projection lamp is usedintegrated design, the light source, the optical system and the imaging system are integrated in a housing, and the volume is relatively fixed, but the projection size can be flexibly changed by adjusting the distance.

in commercial advertising applications, this material difference brings differentValue Proposition. Once the LED display is installed, it can provide a stable and high-quality display effect, suitable for long-term fixed advertising. Projector lamps, on the other hand, are more flexible and are suitable for short-term promotions, events or scenes that require frequent content changes. In addition, the modular design of the LED display also brings maintenance advantages-a single module can be directly replaced if it is damaged, and any major component failure of the projection lamp may cause the entire device to need maintenance.

3 Installation and Maintenance Requirements

3.1 LED display

LED display is a relatively complex project that requires the participation of professional and technical personnel. There are various installation methods, which can be divided into the following categories according to the application scenario:Wall MountSuitable for indoor display screen with small area (less than 10 square meters), requiring the wall to be a solid wall, which can bear the weight of the screen body

;Pillar installationSuitable for outdoor billboards, it is necessary to establish a single-column or double-column structure on the open space, and consider the geological condition of the foundation and the wind-proof level;Mosaic Installationis to embed the display screen into the wall, which does not take up space, but requires a reserved installation location and adopts a pre-maintenance method, which is costly;Roof Installationis mainly applicable to the advertising display of the roof of the building, and the wind-proof grade and waterproof measures should be considered;Hoisting typeSuitable for indoor places such as shopping malls, airports, etc., need to have a reliable lifting structure.

installation process includes site survey, steel structure fabrication, screen installation, control system connection, commissioning, etc. Outdoor installation requires special considerationwaterproof and dustproof(IP protection level),heat dissipation design(such as radiators, fans, air conditioners, etc.),Lightning Protection Grounding(grounding resistance less than 3 ohms) and other factors

. It is worth mentioning that the installation of LED display also needs to consider the viewing angle and viewing distance to ensure that the main audience area can get the best viewing effect.

In terms of maintenance, LED displays are mainly facedRegular cleaning,Module Replacementandsystem debuggingand other work. Since the LED display is composed of a large number of modules, any module or lamp bead failure may cause local black screen or color blocks, affecting the overall effect. Maintenance personnel need to check regularly and replace the faulty module in time. In addition, power and control systems are also common points of failure and require spare parts support. Fortunately, the modular design of the LED display makesPartial Maintenanceis possible, the entire screen does not need to be replaced due to minor faults, reducing long-term maintenance costs

.

3.2 LED Pattern Projection Lamp

LED pattern projection lamp is relatively simple, and the main work is to determine the appropriate projection position, fix the equipment and adjust the projection. The main installation methods areBracket Installation(fixed to the floor, wall or ceiling using special brackets),Ground installation(placed directly on the ground or embedded in the ground) andHoisting(hanging from ceiling), etc. Parameters such as projection distance, projection ratio and offset rate should be considered during installation to ensure that the image is completely projected on the target surface without deformation.

projection lamp installation isflexibility-A device can cover a large area of projection and does not need to be mounted directly on the viewing surface. This makes the projection lamp particularly suitable for applications such as building facade projection and creating atmosphere on large venues. However, the projection lamp also facesAmbient light interferenceproblems need to be carefully designed during installation to avoid direct ambient light on the projection surface

. In addition, the projection lamp also needs to clean the optical components (such as lenses and filters) regularly to avoid dust accumulation affecting the image quality and heat dissipation of the device. Although the LED light source has a long life, it will gradually decay with the use time, resulting in a decrease in brightness. At this time, the entire light source module needs to be replaced. Maintenance of projection lamps also includesPeriodic calibrationto ensure consistency in color and brightness when multiple devices are synchronized.

3.3

Comprehensive comparison from the perspective of installation and maintenance, LED display and projection lamp have their own advantages and disadvantages:

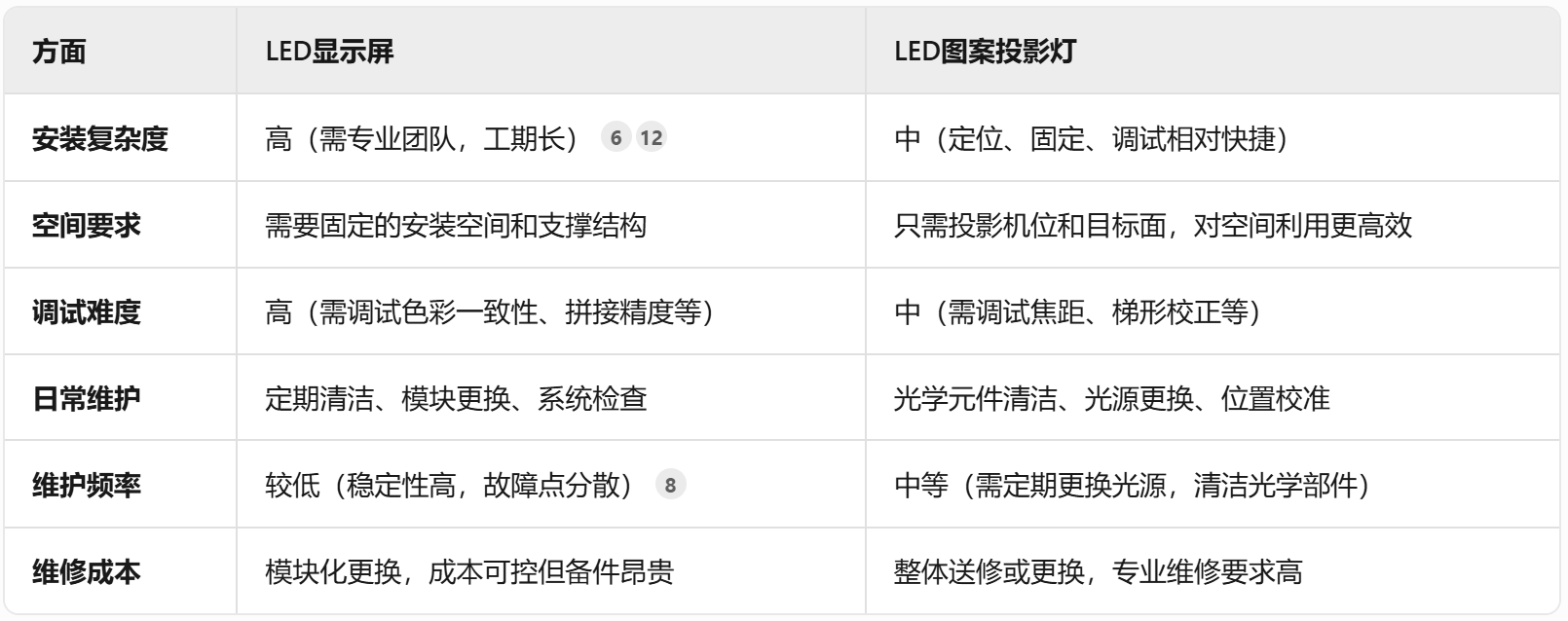

Table: Comparison of Installation and Maintenance Requirements

From the perspective of commercial operation, LED display is suitableLong-term fixed installationscenarios, once installed, can provide stable and reliable long-term service; and projection lamps are more suitableshort-term or need for flexibilityscenes, the installation position and projection content can be changed relatively easily. For commercial advertising operators, this difference directly affects the choice of equipment-if it is a fixed advertising space for long-term lease, LED display may be a more economical choice; if it is a short-term activity or a promotional activity that requires frequent replacement of content, The projection lamp is more advantageous.

4 Cost Benefit Analysis

4.1 initial investment comparison

LED display and LED pattern projection lamp. The initial investment of LED display mainly includes: equipment procurement cost, steel structure cost, installation and commissioning cost and auxiliary equipment cost. Equipment costs are closely related to pixel spacing-the smaller the spacing, the higher the price. For example, the price of P1.8 small pitch LED display can reach tens of thousands of yuan per square meter, while the price of P10 outdoor display is relatively low.

. According to industry data, a 150-inch LED display system has a total investment of about 570,000 yuan, including 480,000 yuan for equipment, 60,000 yuan for installation and commissioning, and 30,000 yuan for auxiliary materials.

In contrast, the initial cost composition of LED pattern projection lamps is simpler: equipment procurement costs, mounting bracket costs, and initial commissioning costs. The price of high-end projection lamps ranges from tens of thousands of yuan to hundreds of thousands of yuan, but compared to LED displays with similar display areas, projection lamps usually have obvious price advantages. A 150-inch laser projection system has a total investment of about 420,000 yuan, which is about 26% lower than the LED system.

. This gap is more obvious in the application of larger display area-the projection lamp only needs to increase the projection distance to cover a larger area, while the LED display needs to increase the number of modules proportionally, and the cost is almost proportional to the display area.

worth noting that both technologieseconomies of scale effectdifferent. With the maturity of technology and market competition, the price of LED displays, especially small-pitch products, is on a downward trend, but the price of high-end products is still high. The price of projection lamps is relatively stable, but the price of professional-grade products with higher brightness is still expensive. For commercial advertising investors, reasonable choices need to be made based on budget and expected returns.

4.2 operation and maintenance costs

from the perspective of life cycle cost, the two technologies show different characteristics. LED display operating costs include: electricity, regular maintenance costs and component replacement costs. The power consumption of LED display is directly related to the area, and the average power consumption is between 400-800W/m2.

. However, since the life of LED lamp beads can reach 100,000 hours, there is almost no need for large-scale replacement under normal use, and the maintenance cost is relatively controllable. In the long run, the LED displayTotal cost of ownership(TCO) may be more advantageous. The research shows that the TCO of the LED system is about 685,000 yuan, while the projection system can reach 732,000 yuan, and the cost of the LED system is reversed.

projection lamps mainly include: electricity, light source replacement costs and optical component cleaning costs. The power consumption of the projection lamp is relatively fixed, and the power consumption of a 10,000 lumen projection lamp is about 1,200W.

. However, the life of the light source of the projection lamp is limited. Although the life of the LED light source has been greatly increased to more than 20,000 hours, it still needs to be replaced regularly, and the light source module of the professional projection lamp is expensive. In addition, optical elements such as filters of the projection lamp also need to be replaced periodically, which increases maintenance costs.

4.3 Return on Investment Analysis

from the perspective of commercial advertising investment, the return mode of the two technologies is also different. LED display due to its high brightness, high definition characteristics, more suitableLong-term fixed advertising space, it can attract long-term advertising contracts and provide stable cash flow. Due to the outstanding visual effect of LED display, the rental of advertising space is usually higher than that of traditional advertising space, which can bring higher income per unit area. In addition, the LED display also has asset value, even if it is no longer used for advertising, it has a certain residual value.

projection lamps is more reflected inflexibility and creative value. Projector lamps can be used to create ad campaigns or seasonal promotions that can quickly adjust location and content to market demand. This makes the projector lamp suitable for short-term high-impact marketing activities, which can quickly create brand topics and social media communication. The advantage of projection lamps is not in the long-term stability of advertising revenue, but in the short term.explosive publicity effect.

For commercial advertising investors, the ideal choice is to use a combination of two technologies according to different advertising space characteristics and marketing strategies. For example, installing a fixed LED display at the main entrance of the mall for long-term brand advertising, while using projector lights in the atrium or specific areas of the mall for seasonal promotions or interactive advertising, to maximize the return on investment.

5 display effect and technical performance

5.1 brightness and contrast

display effect is one of the most concerned indicators of commercial advertising, and brightness is a key factor affecting the visual effect. LED display usingself-luminous technology, each pixel is an independent LED lamp, can directly emit light. This technical feature enables the LED display to achieve extremely high brightness levels, and the brightness of outdoor LED displays can usually reach 5,000-8,000 nits or even higher

. This high brightness ensures that the advertising content is still clearly visible even in the outdoor environment of direct sunlight. In contrast, the LED pattern projection lamp usesreflective imagingprinciple, the light needs to be emitted from the projection lamp through the lens, and then projected to the screen or the surface of the building, there is a lot of light loss in the process, the actual brightness to the human eye is limited. At present, the brightness of high-end commercial projection lamps is about 20,000-30,000 lumens, which is much lower than LED display after conversion to nits.

In terms of contrast, LED displays also have inherent advantages. Contrast refers to the brightness ratio of the brightest and darkest state of the display device. High contrast means that the image is sharper and the black is deeper. The LED display can achieve a true "black field" by turning off a single pixel, and the contrast ratio can reach 5000:1 or even higher

. The contrast of the projection lamp is seriously affected by the ambient light, and even in an ideal state, it is difficult to reach the level of the LED display. This is why in bright environments, projection ads tend to appear "gray" reasons.

5.2 color performance and resolution

color accuracy is essential for brand advertising, it ensures the consistency of brand image. LED display can displaywide color gamut, color saturation up to 90% or more, can restore more real, bright colors

. Modern LED displays also support 10-bit or even 12-bit color depth for smoother color transitions. The color performance of the projection lamp is greatly affected by the ambient light. Although it can perform well in the dark field environment, it will be seriously distorted in the bright environment. In addition, the color brightness (Color Light Output) of projection lamps is usually lower than white brightness, resulting in color performance is not as good as black and white performance.

resolution, the dot spacing of the small-pitch LED display can be reduced to 0.9mm, which can achieve higher physical resolution in the same area.

. However, for outdoor advertising viewed from a distance, the P6-P10 spacing is sufficient to meet the demand and the cost is lower. The resolution of the projection lamp depends on the imaging chip (such as DMD). At present, the mainstream is 1080p, and 4K products are becoming more and more popular. The advantage of the projection lamp is itspixel density fixed, there is no change due to an increase in the projection area, but an excessively large projection area causes a noticeable graininess of the pixel.

5.3 viewing experience and reliability

viewing experience involves multiple dimensions, including viewing angle, response speed, refresh rate, etc. The LED display hasultra-wide viewing angle, the horizontal and vertical viewing angle can reach 160 degrees, ensuring good results from different positions

. In terms of response speed, the LED display is microsecond, which is much faster than the millisecond level of the projection lamp, and the dynamic picture performance is smoother. In terms of refresh rate, the high-end LED display can reach more than 3840Hz, effectively reducing the scanning line problem when shooting.

reliability is a key consideration for commercial advertising operations. LED display usingsolid state device, good shock resistance, high stability, and the mean time to failure (MTBF) can reach more than 10,000 hours

. The projection lamp contains optical lenses, filters and other precision components, which are more sensitive to vibration and require more careful maintenance. In terms of environmental adaptability, the LED display can be specially designed for outdoor type, with waterproof, dustproof, high and low temperature resistance, suitable for various harsh environments. The projection lamp has higher requirements for the environment, especially sensitive to ambient light, and needs to control the light conditions to obtain the best results.

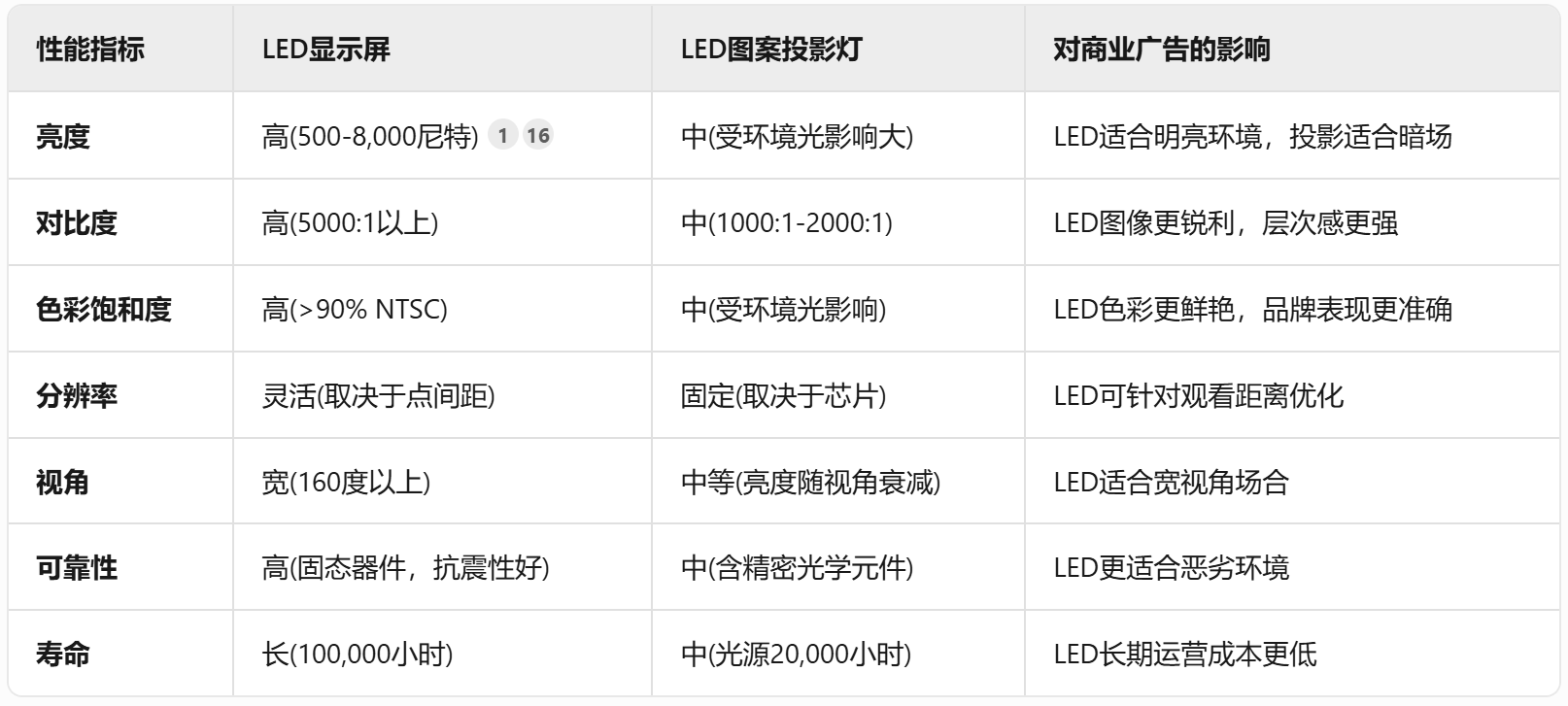

Table: Display Effect and Technical Performance Comparison

Taken together, LED displays are superior to projection lamps in most display performance indicators, especially in terms of brightness, contrast and reliability. This is why in high-end commercial advertising occasions, LED display has become the preferred technology. However, projection lamps still have an irreplaceable position in specific application scenarios, such as building facade projection, creative advertising, etc., with their unique installation flexibility and creative possibilities.

6 Transportation and Logistics Considerations

6.1 LED display

LED display is a complex process, which requires comprehensive consideration of its size, weight, vulnerability and other factors. Due to the use of LED displayModular design, it is usually composed of a large number of modules, boxes, steel structures and auxiliary equipment, making the transportation bulky and heavy. For example, the weight of outdoor LED display can reach 50-100kg/m2, of which steel structure accounts for a large proportion.

. This weight and volume characteristic results in higher transportation costs, especially for long-distance transportation. During transportation, LED displays are easily damaged, especially precision components such as lamp beads and driver ICs, which require professional protective packaging, such as custom wooden boxes or reinforced wooden frames.

For international or long-distance transportation, LED display is usually usedsemi-bulk (SKD)orin bulk (CKD)way to reduce the volume and weight of a single piece, and reduce the cost of tariffs. Secondary assembly and commissioning is required on site, which increases installation time and labor costs. The preparation work before transportation is also very important, including accurate measurement of the size of the installation position, pre-planning the display module arrangement, checking the installation environment, etc. These preparations can effectively avoid the adaptation problem after transportation.

worth noting that in recent years, LED display technology is also developing in the direction of lightweight, and thinner and lighter products have appeared. For example, the weight of the transparent LED display is only half of the traditional screen, about 12kg/square meter, which greatly reduces the transportation burden.

. This innovative product improves the transportability of LED displays and expands their range of applications.

6.2 LED pattern projection lamp

In contrast, LED pattern projection lamps have obvious advantages in transportation. Projection lampintegrated equipment, the volume is relatively fixed and the quantity is usually small (unless it is a multi-fusion project), making packaging and transportation easier. A professional projection lamp of 10,000 lumens weighs about 10-20kg, which is much lower than the LED display of the same display area.

. This means that the transportation cost of projection lamps is usually lower, especially for long-distance or temporary activities, the advantages are more obvious.

projection lamps also faces some challenges, mainly as aPrecision Optical Instruments, sensitive to vibration, shock, temperature and humidity changes. During transportation, professional shockproof packaging and temperature and humidity control are required to avoid displacement or damage of optical components. In addition, accessories such as lenses, filters, brackets, etc. of the projection lamp also need to be properly packaged to prevent loss or damage. For international transportation, issues such as power adaptation (different voltage standards in different countries) and customs declarations also need to be considered.

From the perspective of commercial advertising operations, there are significant differences in logistics management between the two technologies:

LED displayis more suitablefixed installationscenarios, once the installation is complete, the location is usually not changed frequently. This means that although the initial transportation cost is higher, it is a one-time investment and the logistics cost of long-term operation is lower. The modular design of the LED display also brings an advantage: damaged modules can be transported and replaced separately, instead of transporting the entire display, reducing the logistics complexity of later maintenance.

LED pattern projection lampis more suitable.move frequentlyapplication scenarios, such as touring activities, short-term promotions, etc. The lightness of the projector lamp allows it to be transported and reused between locations at relatively low cost. This flexibility is especially beneficial for brand advertising campaigns that cover multiple markets. A single device can serve multiple regions, greatly improving device utilization and return on investment.

From the perspective of logistics management, the choice of LED display or projection lamp should be based on the following considerations: if the advertising space is fixed, the service life is long (more than one year), and the budget is sufficient, LED display is a better choice, and its excellent display effect and stability can provide long-term value. If the advertising space needs to be changed frequently, or for short-term activities (months or less), projection lamps are more suitable, and their transportation advantages and flexibility can better meet the demand.

7 Business Value and Market Prospects

7.1 Commercial Advertising Value Analysis

in the field of commercial advertising, LED display and pattern projection lamp have their own unique value proposition. LED display with itsHigh visual impactandsense of science and technology, become a symbol of brand strength. LED large-screen advertisements installed in prime locations such as business districts and transportation hubs can not only directly transmit advertising information, but also enhance brand image and demonstrate brand strength. Studies have shown that high-quality LED display advertising can enhance the audience's favorability and trust in the brand, resulting in a premium effect.

. In addition, the LED display also hasMedia Properties, the content can be updated remotely at any time and respond to market changes in a timely manner, which is more time-sensitive than traditional static billboards.

LED pattern projection lamp advertising value is more reflected increative noveltyandinteractivity. Projection advertising can project advertising content onto building facades, the ground or specific objects to create an immersive experience and bring novelty to the audience. This novelty makes it easier for projection ads to spread and expand their influence on social media. The projection lamp also supports interactive functions. Through sensors or somatosensory devices, the audience's actions can be captured and fed back in real time in the projected content to improve the sense of participation and memory.

. For example, in the promotion activities of the shopping center, the projection lamp can project an interactive game on the ground, and the customer obtains a coupon by stepping on a specific pattern. This interactivity significantly improves the advertising effect.

7.2 Return on Investment and Market Prospects

From the perspective of return on investment (ROI), although the initial investment of LED display is high, the long-term return is considerable due to its long life and low maintenance requirements. Data show that good quality LED display can be used for 8-10 years, during which the main cost is electricity and routine maintenance.

. Although the initial investment of the projection lamp is low, the life of the light source is limited, and the replacement cost under long-term use cannot be ignored. However, the flexibility value of the projector lamp should also be included in the ROI calculation-the same equipment can be recycled in different locations, improving equipment utilization.

market trends show that both technologies are moving in the direction of higher performance and better cost-effectiveness. In terms of LED displays, small pitch, Mini/Micro LED technology is driving the display to higher definition and higher reliability, while the cost is decreasing year by year.

. In terms of projection lamps, laser light source and solid-state light source technology are improving brightness and extending life, and 4K and even 8K resolution products are becoming more popular. Interestingly, the two technologies also have a convergence trend, that is, the use of LED display and projection lamps in the same occasion, to play their respective advantages. For example, in large-scale brand activities, the use of LED display as the main stage background to ensure the basic visual effect, while the use of projection lamps to expand the visual boundary, create an atmosphere of the environment, to achieveimmersive experience.

7.3 selection strategy and development trend

For commercial advertising operators, the choice of LED display or projection lamp should be based on the following considerations:

• Brand Positioning and Budget: High-end brands, adequate budget and long-term stable display, LED display is a better choice; focus on creativity, flexibility and short-term impact of the brand, can consider the projection lamp.
• Installation Environment: the ambient light is strong or not controllable occasions, should give priority to the LED display; light controllable or night use of the occasion, the projection lamp effect is better.
• Content Policy: Need to frequently update the content or interactive advertising, projection lamp has more advantages; content is relatively fixed or emphasizes the quality of advertising, LED display is more appropriate.
• operational capacity:LED display requires a professional maintenance team; projection lamp maintenance is relatively simple, but requires creative support.

the future, both technologies will continue to play an important role in the field of commercial advertising. The LED display willhigher definition,more flexible form(e. g. transparent, bendable) direction, integration with AR, VR and other technologies to create a more immersive experience

. The projection lamp will focus on improving brightness, reducing power consumption, and combining with AI and interactive sensing technology to achieve more intelligent advertising push. It is worth noting that,Fusion Applicationswill become a trend, and the boundaries between the two may gradually blur, creating greater value for commercial advertising together.

Conclusion

LED pattern projection lamp and LED display as two mainstream commercial advertising display technology, each has its own unique advantages and application scenarios. LED displays perform well in terms of brightness, color, reliability and service life, and are suitable for long-term fixed high-quality advertising displays; while LED pattern projection lamps are superior in flexibility, creativity and interactivity, and are suitable for short-term and innovative Advertising activities. From a business investment perspective, LED displays have high initial investment but stable long-term returns, suitable for long-term advertising projects with sufficient budgets; projection lamps have low initial investment and flexibility, and are suitable for advertising campaigns that pursue innovation and short-term ROI.

Commercial advertising operators should consider the most appropriate technical solution based on brand positioning, budget constraints, environmental conditions, content strategy and operational capabilities. In some cases, the two technologies can even be combined to maximize the effectiveness of advertising. In the future, with technological progress and application innovation, both technologies will continue to evolve, creating more possibilities for commercial advertising.
